SAF97DT132MC4詳細信息
SAF97DT132MC4
訂購熱線：13360667204
關鍵詞：11KW臥式減速機電機一體機_SAF97DT132MC4_SAF97DT132ML4
SAF97DT132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF97DT132MC4 | 105.71 | 7.5KW | 14.0rpm | 4050N.m | 243kg | 33100N | 0.85 |
| SAF97DT132MC4 | 89.60 | 7.5KW | 16.0rpm | 3460N.m | 243kg | 34200N | 0.95 |
| SAF97DT132MC4 | 78.26 | 7.5KW | 19.0rpm | 3040N.m | 243kg | 34900N | 1.00 |
| SAF97DT132MC4 | 65.45 | 7.5KW | 22.0rpm | 2560N.m | 243kg | 35500N | 1.15 |
| SAF97DT132MC4 | 71.43 | 7.5KW | 21.0rpm | 3110N.m | 243kg | 34800N | 1.05 |
| SAF97DT132MC4 | 60.59 | 7.5KW | 24.0rpm | 2650N.m | 243kg | 35400N | 1.25 |
| SAF97DT132MC4 | 55.79 | 7.5KW | 26.0rpm | 2450N.m | 243kg | 35700N | 1.35 |
| SAF97DT132MC4 | 49.87 | 7.5KW | 29.0rpm | 2190N.m | 243kg | 36000N | 1.50 |
| SAF97DT132MC4 | 44.89 | 7.5KW | 33.0rpm | 1980N.m | 243kg | 36200N | 1.65 |
| SAF97DT132MC4 | 40.65 | 7.5KW | 36.0rpm | 1800N.m | 243kg | 36300N | 1.85 |
| SAF97DT132MC4 | 36.05 | 7.5KW | 41.0rpm | 1600N.m | 243kg | 36000N | 2.10 |
| SAF97DT132MC4 | 32.60 | 7.5KW | 45.0rpm | 1450N.m | 243kg | 35300N | 2.20 |
| SAF97DT132MC4 | 26.39 | 7.5KW | 56.0rpm | 1200N.m | 243kg | 31900N | 2.20 |
| SAF97DT132MC4 | 23.59 | 7.5KW | 62.0rpm | 1080N.m | 243kg | 31200N | 2.40 |
| SAF97DT132MC4 | 21.23 | 7.5KW | 69.0rpm | 970N.m | 243kg | 30600N | 2.70 |
| SAF97DT132MC4 | 19.23 | 7.5KW | 76.0rpm | 880N.m | 243kg | 30000N | 2.90 |
SAF97DT132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF97DT132ML4 | 105.71 | 7.5KW | 14.0rpm | 4050N.m | 243kg | 33100N | 0.85 |
| SAF97DT132ML4 | 89.60 | 7.5KW | 16.0rpm | 3460N.m | 243kg | 34200N | 0.95 |
| SAF97DT132ML4 | 78.26 | 7.5KW | 19.0rpm | 3040N.m | 243kg | 34900N | 1.00 |
| SAF97DT132ML4 | 65.45 | 7.5KW | 22.0rpm | 2560N.m | 243kg | 35500N | 1.15 |
| SAF97DT132ML4 | 71.43 | 7.5KW | 21.0rpm | 3110N.m | 243kg | 34800N | 1.05 |
| SAF97DT132ML4 | 60.59 | 7.5KW | 24.0rpm | 2650N.m | 243kg | 35400N | 1.25 |
| SAF97DT132ML4 | 55.79 | 7.5KW | 26.0rpm | 2450N.m | 243kg | 35700N | 1.35 |
| SAF97DT132ML4 | 49.87 | 7.5KW | 29.0rpm | 2190N.m | 243kg | 36000N | 1.50 |
| SAF97DT132ML4 | 44.89 | 7.5KW | 33.0rpm | 1980N.m | 243kg | 36200N | 1.65 |
| SAF97DT132ML4 | 40.65 | 7.5KW | 36.0rpm | 1800N.m | 243kg | 36300N | 1.85 |
| SAF97DT132ML4 | 36.05 | 7.5KW | 41.0rpm | 1600N.m | 243kg | 36000N | 2.10 |
| SAF97DT132ML4 | 32.60 | 7.5KW | 45.0rpm | 1450N.m | 243kg | 35300N | 2.20 |
| SAF97DT132ML4 | 26.39 | 7.5KW | 56.0rpm | 1200N.m | 243kg | 31900N | 2.20 |
| SAF97DT132ML4 | 23.59 | 7.5KW | 62.0rpm | 1080N.m | 243kg | 31200N | 2.40 |
| SAF97DT132ML4 | 21.23 | 7.5KW | 69.0rpm | 970N.m | 243kg | 30600N | 2.70 |
| SAF97DT132ML4 | 19.23 | 7.5KW | 76.0rpm | 880N.m | 243kg | 30000N | 2.90 |

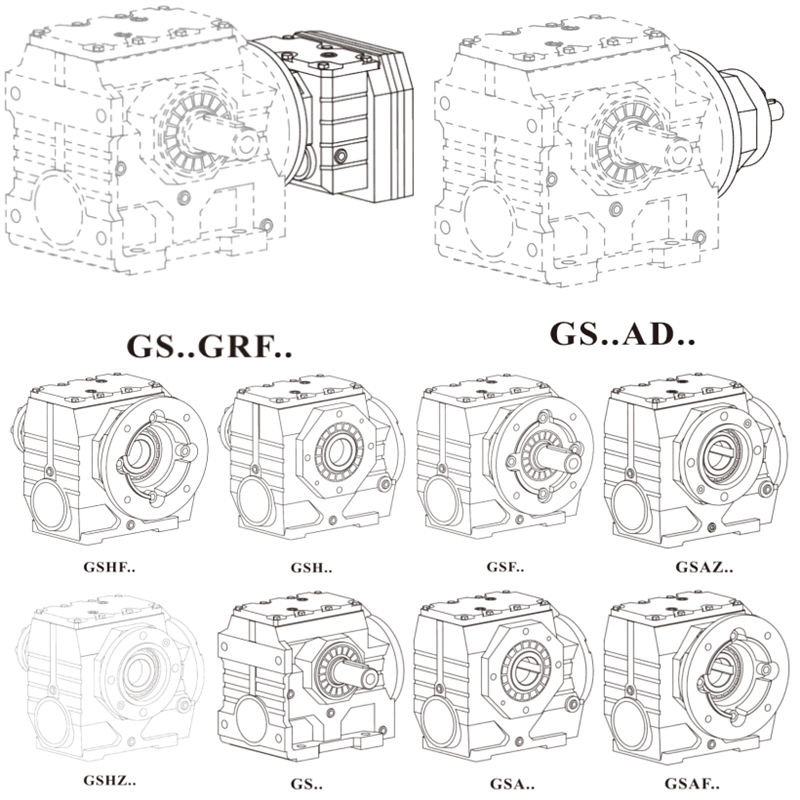

SAF97DT132MC4電動機減速機類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

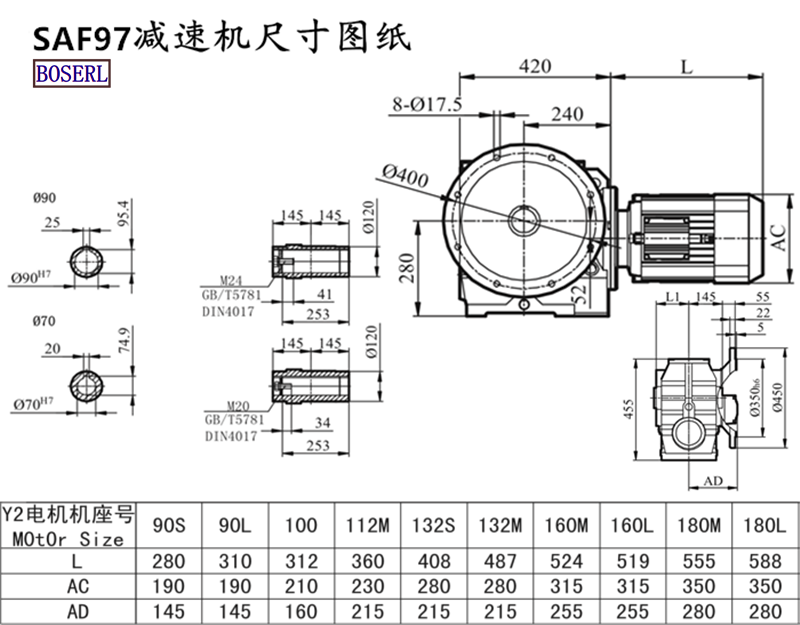

SAF97DT132MC4電動機減速機安裝尺寸圖紙
SAF97DT132MC4電動機減速機生產工廠展示：看廠請?zhí)崆叭祛A約
法蘭式減速機應用案例展示：
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 11KW臥式減速機電機一體機 SAF97DT132MC4 SAF97DT132ML4
