SAF87R57DM71S4詳細信息
SAF87R57DM71S4
關鍵詞：160KW用什么斜齒輪減速電機_SAF87R57DM71S4_SAF87R57DRS63MS4
SAF87R57DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF87R57DM71S4 | 2905 | 0.25KW | 0.45r/min | 2930N.m | 128kg | 22200N | 0.85 |
| SAF87R57DM71S4 | 2586 | 0.25KW | 0.50r/min | 2560N.m | 128kg | 27400N | 1.00 |
| SAF87R57DM71S4 | 2335 | 0.25KW | 0.56r/min | 2290N.m | 128kg | 27900N | 1.10 |
| SAF87R57DM71S4 | 2054 | 0.25KW | 0.63r/min | 1990N.m | 128kg | 28400N | 1.25 |
| SAF87R57DM71S4 | 1824 | 0.25KW | 0.71r/min | 1770N.m | 128kg | 28800N | 1.40 |
| SAF87R57DM71S4 | 1631 | 0.25KW | 0.80r/min | 1580N.m | 128kg | 29100N | 1.60 |
| SAF87R57DM71S4 | 930 | 0.25KW | 1.40r/min | 930N.m | 128kg | 29700N | 2.70 |
SAF87R57DRS63MS4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF87R57DRS63MS4 | 6706 | 0.12KW | 0.21r/min | 2690N.m | 123.5kg | 27100N | 0.95 |
| SAF87R57DRS63MS4 | 5875 | 0.12KW | 0.23r/min | 2400N.m | 123.5kg | 27700N | 1.05 |
| SAF87R57DRS63MS4 | 5187 | 0.12KW | 0.27r/min | 1980N.m | 123.5kg | 28500N | 1.25 |
| SAF87R57DRS63MS4 | 4606 | 0.12KW | 0.30r/min | 1760N.m | 123.5kg | 28800N | 1.40 |
| SAF87R57DRS63MS4 | 3872 | 0.12KW | 0.36r/min | 1460N.m | 123.5kg | 29200N | 1.70 |

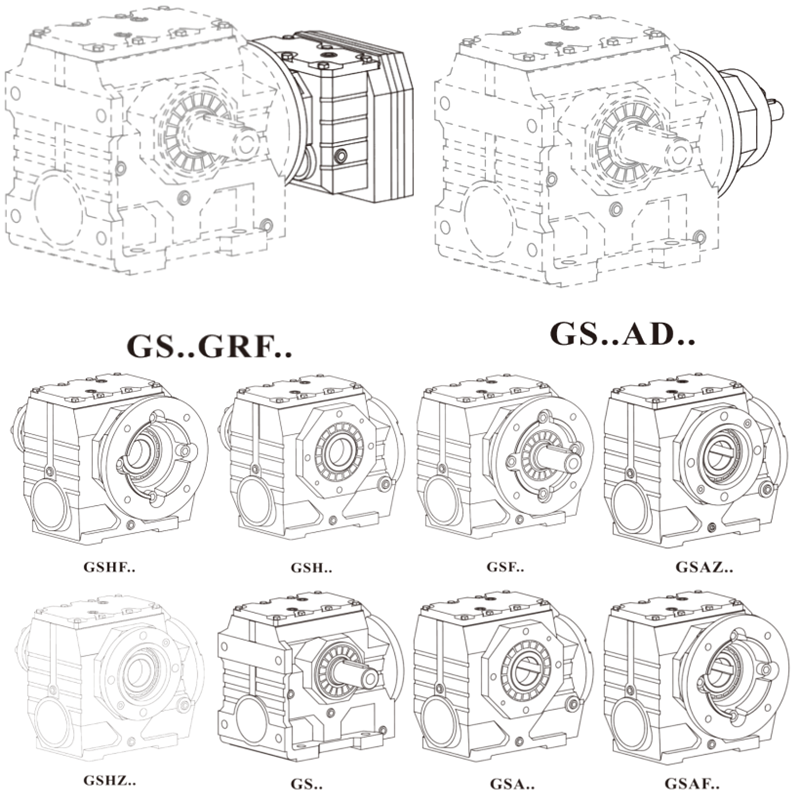

SAF87R57DM71S4電機減速器類型：
S87R57DM71S4底腳安裝-斜齒輪自鎖減速機
SA87R57DM71S4空心軸安裝-斜齒輪蝸輪蝸桿減速機
SAF87R57DM71S4是B5法蘭安裝款式-斜齒輪蝸輪蝸桿減速機
SAZ87R57DM71S4是B14法蘭空心軸安裝-斜齒輪蝸輪蝸桿減速機
SF87R57DM71S4是B5法蘭實心軸安裝-斜齒輪蝸輪蝸桿減速機
SH87R57DM71S4是空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SHF87R57DM71S4是B5法蘭空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SHZ87R57DM71S4是B14法蘭空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SA87/TR57DM71S4扭力臂空心軸安裝-斜齒輪蝸輪蝸桿減速機
SH87/TR57DM71S4是扭力臂空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SA87BR57DM71S4底腳空心軸安裝-斜齒輪蝸輪蝸桿減速機
SH87BR57DM71S4底腳空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
ST87R57DM71S4實心軸輸出扭力臂安裝-斜齒輪蝸輪蝸桿減速機

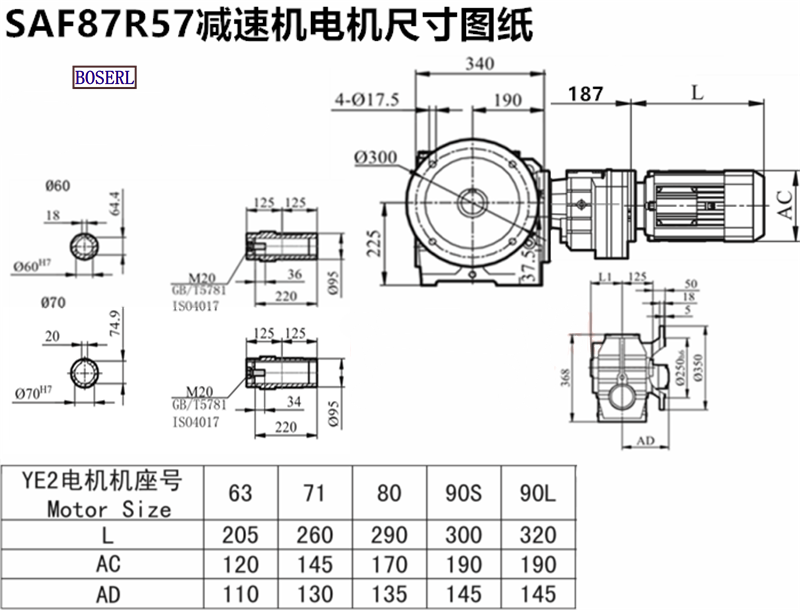

SAF87R57DM71S4電機減速器安裝尺寸圖紙
SAF87R57DM71S4電機減速器生產工廠展示：看廠請?zhí)崆叭祛A(yù)約法蘭式減速機
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 160KW用什么斜齒輪減速電機 SAF87R57DM71S4 SAF87R57DRS63MS4
- 上一條SAF87R57DM63S4
- 下一條SAF87R57DT90S4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| SAF87R57DM71S4減速機樣本 |
|
| SAF87R57DM71S4減速機三維圖紙 |
|
