R87DRN132ML4詳細信息
R87DRN132ML4
訂購熱線：13360667204
關鍵詞：4千瓦電動機配減速機_R87DRN132ML4_R87DRN132MC4
R87DRN132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R87DRN132ML4 | 47.58 | 5.5KW | 31rpm | 1710N.m | 123kg | 15700N | 0.9 |
| R87DRN132ML4 | 41.74 | 5.5KW | 35rpm | 1500N.m | 123kg | 17200N | 1.05 |
| R87DRN132ML4 | 36.84 | 5.5KW | 40rpm | 1320N.m | 123kg | 17100N | 1.15 |
| R87DRN132ML4 | 32.66 | 5.5KW | 45rpm | 1170N.m | 123kg | 16700N | 1.3 |
| R87DRN132ML4 | 27.88 | 5.5KW | 52rpm | 1000N.m | 123kg | 16100N | 1.5 |
| R87DRN132ML4 | 27.84 | 5.5KW | 52rpm | 1000N.m | 123kg | 16100N | 1.55 |
| R87DRN132ML4 | 23.4 | 5.5KW | 62rpm | 840N.m | 123kg | 15400N | 1.85 |
| R87DRN132ML4 | 21.51 | 5.5KW | 68rpm | 775N.m | 123kg | 15100N | 1.95 |
| R87DRN132ML4 | 19.1 | 5.5KW | 76rpm | 685N.m | 123kg | 14600N | 2.1 |
| R87DRN132ML4 | 17.08 | 5.5KW | 85rpm | 615N.m | 123kg | 14200N | 2.3 |
| R87DRN132ML4 | 15.35 | 5.5KW | 95rpm | 550N.m | 123kg | 13800N | 2.4 |
| R87DRN132ML4 | 13.33 | 5.5KW | 109rpm | 480N.m | 123kg | 13300N | 2.7 |
| R87DRN132ML4 | 11.93 | 5.5KW | 122rpm | 430N.m | 123kg | 12900N | 2.9 |
| R87DRN132ML4 | 9.9 | 5.5KW | 147rpm | 355N.m | 123kg | 12200N | 3.3 |
| R87DRN132ML4 | 9.14 | 5.5KW | 159rpm | 330N.m | 123kg | 12100N | 3.7 |
| R87DRN132ML4 | 8.22 | 5.5KW | 177rpm | 295N.m | 123kg | 11700N | 3.9 |
| R87DRN132ML4 | 7.13 | 5.5KW | 204rpm | 255N.m | 123kg | 11200N | 4.2 |
R87DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R87DRN132MC4 | 36.84 | 7.5KW | 40rpm | 1790N.m | 136kg | 14800N | 0.85 |
| R87DRN132MC4 | 32.66 | 7.5KW | 45rpm | 1590N.m | 136kg | 15600N | 0.95 |
| R87DRN132MC4 | 27.88 | 7.5KW | 53rpm | 1350N.m | 136kg | 15200N | 1.1 |
| R87DRN132MC4 | 27.84 | 7.5KW | 53rpm | 1350N.m | 136kg | 15200N | 1.15 |
| R87DRN132MC4 | 23.4 | 7.5KW | 63rpm | 1140N.m | 136kg | 14600N | 1.35 |
| R87DRN132MC4 | 21.51 | 7.5KW | 68rpm | 1040N.m | 136kg | 14400N | 1.45 |
| R87DRN132MC4 | 19.1 | 7.5KW | 77rpm | 930N.m | 136kg | 14000N | 1.55 |
| R87DRN132MC4 | 17.08 | 7.5KW | 86rpm | 830N.m | 136kg | 13600N | 1.65 |
| R87DRN132MC4 | 15.35 | 7.5KW | 96rpm | 745N.m | 136kg | 12600N | 1.8 |
| R87DRN132MC4 | 13.33 | 7.5KW | 110rpm | 645N.m | 136kg | 12800N | 1.95 |
| R87DRN132MC4 | 11.93 | 7.5KW | 123rpm | 580N.m | 136kg | 12500N | 2.1 |
| R87DRN132MC4 | 9.9 | 7.5KW | 148rpm | 480N.m | 136kg | 11900N | 2.4 |
| R87DRN132MC4 | 9.14 | 7.5KW | 161rpm | 445N.m | 136kg | 11800N | 2.7 |
| R87DRN132MC4 | 8.22 | 7.5KW | 179rpm | 400N.m | 136kg | 11500N | 2.9 |
| R87DRN132MC4 | 7.13 | 7.5KW | 206rpm | 345N.m | 136kg | 11000N | 3.1 |
| R87DRN132MC4 | 6.39 | 7.5KW | 230rpm | 310N.m | 136kg | 10700N | 3.3 |
| R87DRN132MC4 | 5.3 | 7.5KW | 277rpm | 255N.m | 136kg | 10100N | 3.5 |

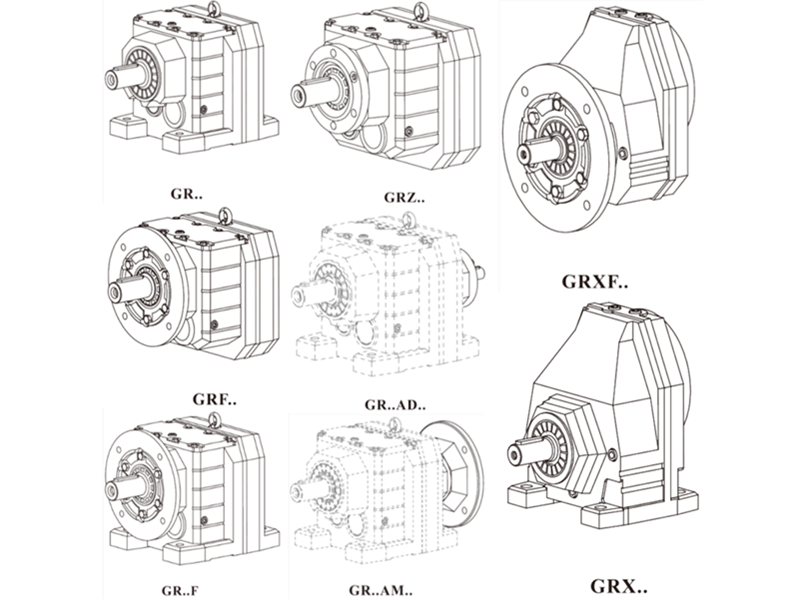

R87DRN132ML4減速器電動機類型：

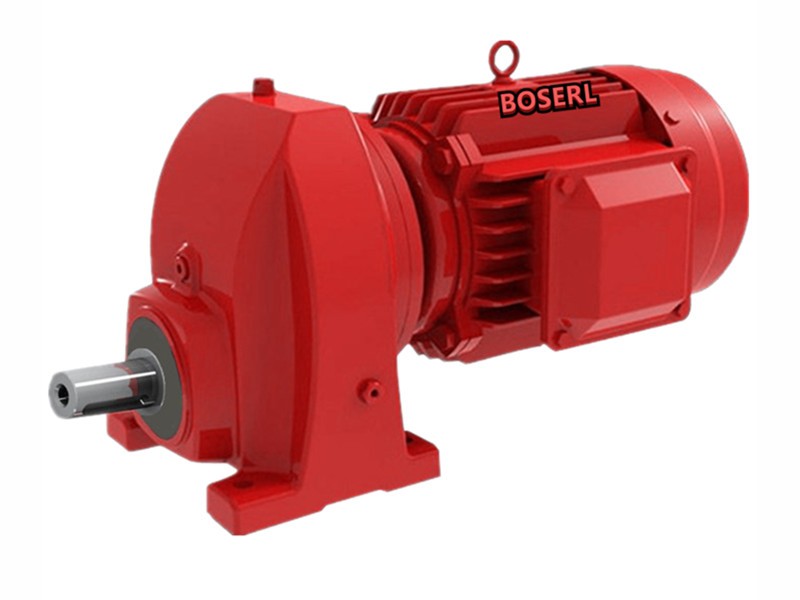

RX..DR..單級底腳安裝斜齒輪減速電機

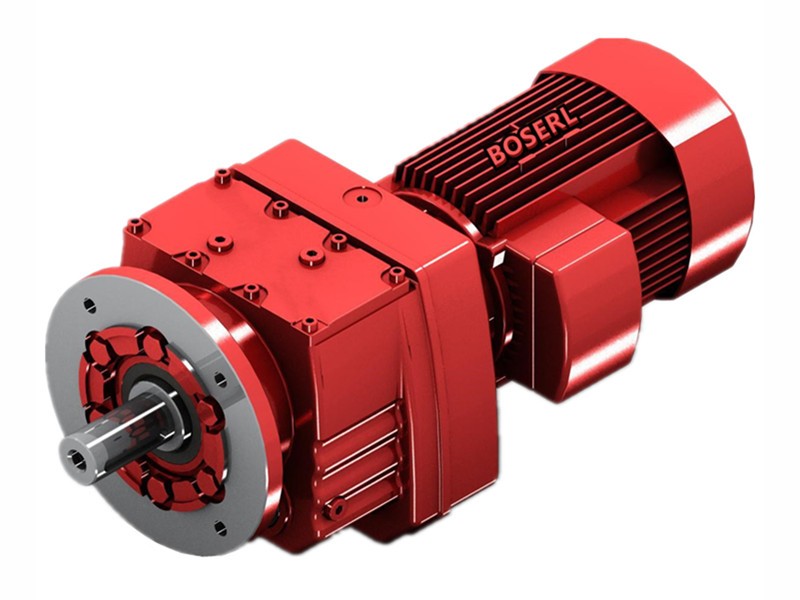

RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

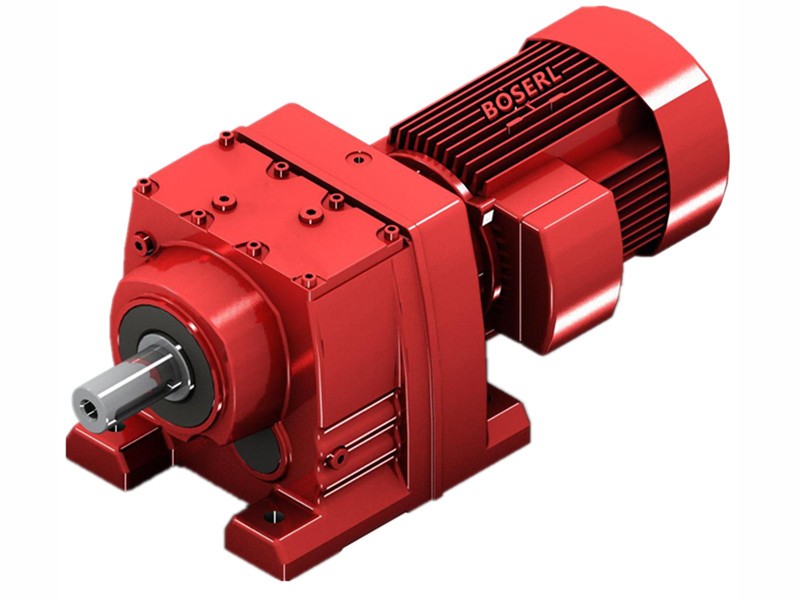

R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機
R87DRN132ML4減速器電動機安裝尺寸圖紙
R87DRN132ML4減速器電動機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
