KAF87DT180LC4詳細信息

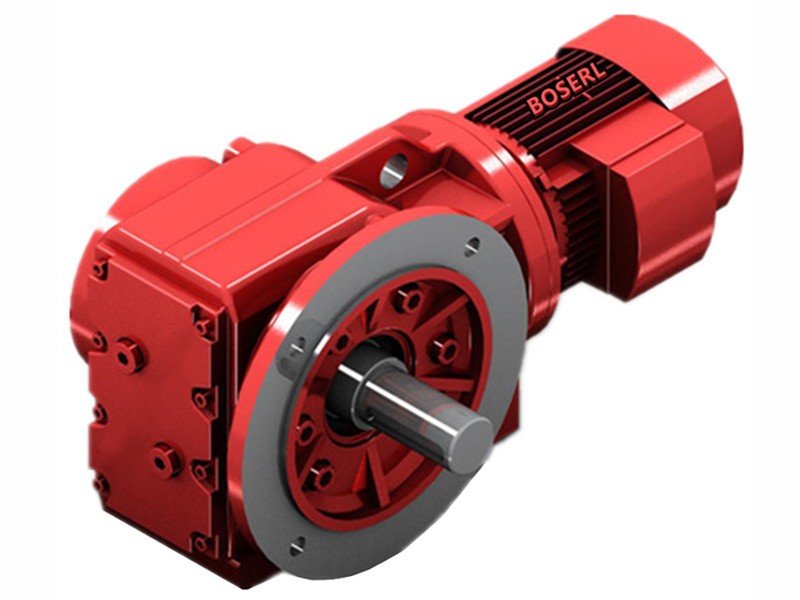

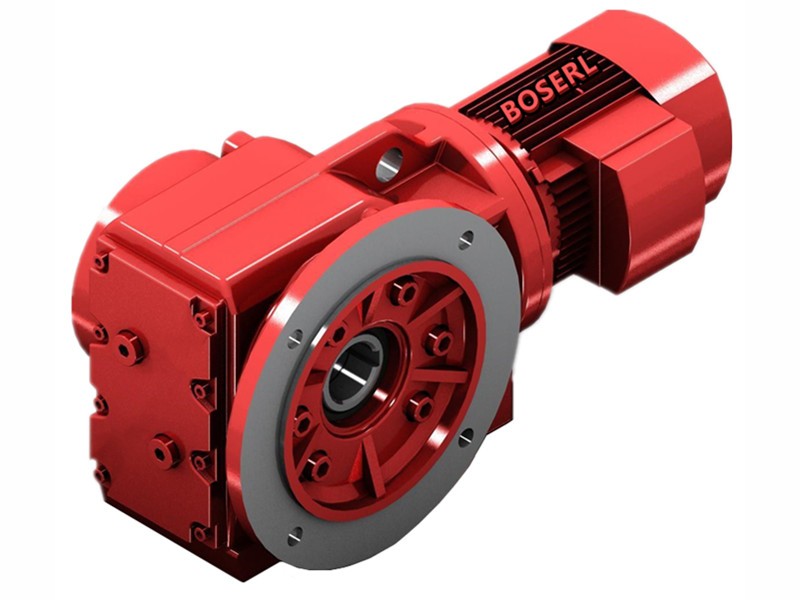

KAF87DT180LC4
關鍵詞：旋轉92噸負載電機減速機_KAF87DT180LC4_KAF87DRS180LC4
KAF87DT180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KAF87DT180LC4 | 31.39 | 15KW | 47rpm | 3080N.m | 205Kg | 17300N | 0.9 |
| KAF87DT180LC4 | 27.88 | 15KW | 52rpm | 2730N.m | 205Kg | 17600N | 0.95 |
| KAF87DT180LC4 | 24.92 | 15KW | 59rpm | 2440N.m | 205Kg | 17800N | 1 |
| KAF87DT180LC4 | 22.41 | 15KW | 65rpm | 2200N.m | 205Kg | 18000N | 1.05 |
| KAF87DT180LC4 | 19.45 | 15KW | 75rpm | 1910N.m | 205Kg | 18000N | 1.2 |
| KAF87DT180LC4 | 17.42 | 15KW | 84rpm | 1710N.m | 205Kg | 18000N | 1.3 |
| KAF87DT180LC4 | 16 | 15KW | 91rpm | 1570N.m | 205Kg | 16800N | 1.15 |
| KAF87DT180LC4 | 14.45 | 15KW | 101rpm | 1420N.m | 205Kg | 17800N | 1.5 |
| KAF87DT180LC4 | 12.56 | 15KW | 116rpm | 1230N.m | 205Kg | 17600N | 1.6 |
| KAF87DT180LC4 | 11.17 | 15KW | 131rpm | 1100N.m | 205Kg | 16600N | 1.35 |
| KAF87DT180LC4 | 10 | 15KW | 146rpm | 980N.m | 205Kg | 16400N | 1.55 |
| KAF87DT180LC4 | 8.29 | 15KW | 176rpm | 810N.m | 205Kg | 16000N | 1.7 |
| KAF87DT180LC4 | 7.21 | 15KW | 202rpm | 705N.m | 205Kg | 15700N | 1.85 |
KAF87DRS180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KAF87DRS180LC4 | 31.39 | 15KW | 47rpm | 3080N.m | 205Kg | 17300N | 0.9 |
| KAF87DRS180LC4 | 27.88 | 15KW | 52rpm | 2730N.m | 205Kg | 17600N | 0.95 |
| KAF87DRS180LC4 | 24.92 | 15KW | 59rpm | 2440N.m | 205Kg | 17800N | 1 |
| KAF87DRS180LC4 | 22.41 | 15KW | 65rpm | 2200N.m | 205Kg | 18000N | 1.05 |
| KAF87DRS180LC4 | 19.45 | 15KW | 75rpm | 1910N.m | 205Kg | 18000N | 1.2 |
| KAF87DRS180LC4 | 17.42 | 15KW | 84rpm | 1710N.m | 205Kg | 18000N | 1.3 |
| KAF87DRS180LC4 | 16 | 15KW | 91rpm | 1570N.m | 205Kg | 16800N | 1.15 |
| KAF87DRS180LC4 | 14.45 | 15KW | 101rpm | 1420N.m | 205Kg | 17800N | 1.5 |
| KAF87DRS180LC4 | 12.56 | 15KW | 116rpm | 1230N.m | 205Kg | 17600N | 1.6 |
| KAF87DRS180LC4 | 11.17 | 15KW | 131rpm | 1100N.m | 205Kg | 16600N | 1.35 |
| KAF87DRS180LC4 | 10 | 15KW | 146rpm | 980N.m | 205Kg | 16400N | 1.55 |
| KAF87DRS180LC4 | 8.29 | 15KW | 176rpm | 810N.m | 205Kg | 16000N | 1.7 |
| KAF87DRS180LC4 | 7.21 | 15KW | 202rpm | 705N.m | 205Kg | 15700N | 1.85 |
KAF87DT180LC4減速機類型：
K..DR..底腳安裝斜齒輪—傘齒輪減速電機
KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA..DR..空心軸斜齒輪─傘齒輪減速電機
KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KAF87DT180LC4減速機馬達安裝尺寸圖紙：
KAF87DT180LC4減速機生產工廠展示：看廠請?zhí)崆叭祛A約
大減速比減速機應用案例展示：
關鍵詞:KAF系列減速機_大減速比減速機與電機_大速比減速機電機一套_大減速比減速器_大比數減速機_大比數減速器_大速比減速器生產廠家
KAF系列減速機型號：KAF37減速機,KAF47減速機,KAF57減速機,KAF67減速機,KAF77減速機,KAF87減速機,KAF97減速機,KAF107減速機,KAF127減速機,KAF157減速機,KAF167減速機,KAF187減速機
KAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 旋轉92噸負載電機減速機 KAF87DT180LC4 KAF87DRS180LC4
