KAF67R37DM71S4詳細信息
KAF67R37DM71S4
關鍵詞：160KW電機能配多大螺旋傘齒輪減速器_KAF67R37DM71S4_KAF67R37DRN80MK4
KAF67R37DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KAF67R37DM71S4 | 613 | 0.25KW | 2.10r/min | 970N.m | 51.5kg | 5680N | 0.85 |
| KAF67R37DM71S4 | 542 | 0.25KW | 2.40r/min | 860N.m | 51.5kg | 9920N | 0.95 |
| KAF67R37DM71S4 | 471 | 0.25KW | 2.80r/min | 775N.m | 51.5kg | 10700N | 1.05 |
| KAF67R37DM71S4 | 420 | 0.25KW | 3.10r/min | 665N.m | 51.5kg | 11500N | 1.25 |
| KAF67R37DM71S4 | 361 | 0.25KW | 3.60r/min | 590N.m | 51.5kg | 11900N | 1.4 |
| KAF67R37DM71S4 | 323 | 0.25KW | 4.00r/min | 520N.m | 51.5kg | 12300N | 1.55 |
| KAF67R37DM71S4 | 279 | 0.25KW | 4.70r/min | 440N.m | 51.5kg | 12600N | 1.85 |
| KAF67R37DM71S4 | 246 | 0.25KW | 5.30r/min | 390N.m | 51.5kg | 12800N | 2.10 |
| KAF67R37DM71S4 | 217 | 0.25KW | 6.00r/min | 345N.m | 51.5kg | 13000N | 2.40 |
KAF67R37DRN80MK4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KAF67R37DRN80MK4 | 279 | 0.55KW | 5.00r/min | 950N.m | 56.5kg | 7650N | 0.85 |
| KAF67R37DRN80MK4 | 246 | 0.55KW | 5.60r/min | 840N.m | 56.5kg | 10100N | 0.95 |
| KAF67R37DRN80MK4 | 217 | 0.55KW | 6.40r/min | 745N.m | 56.5kg | 10900N | 1.10 |
| KAF67R37DRN80MK4 | 191 | 0.55KW | 7.20r/min | 655N.m | 56.5kg | 11600N | 1.25 |

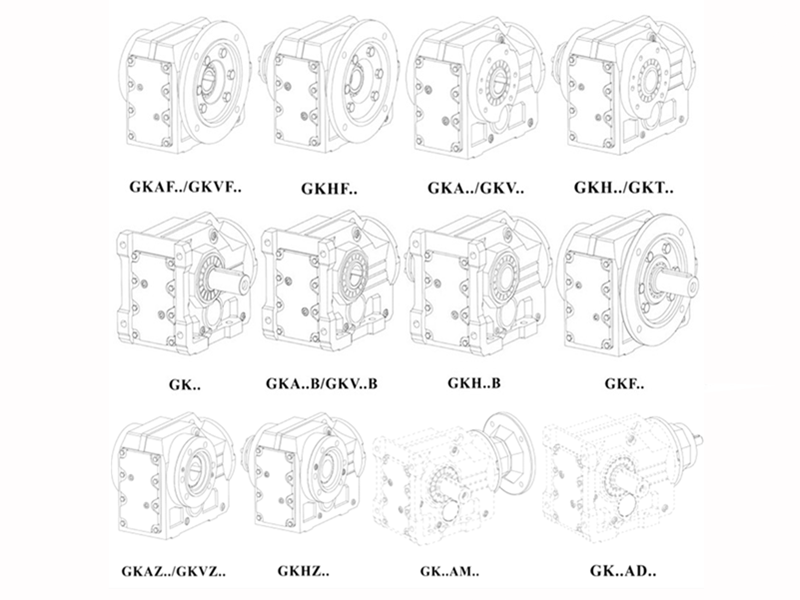

KAF67R37DM71S4減速機類型：
K67R37DM71S4底腳安裝斜齒輪—傘齒輪減速電機
KA67BR37DM71S4底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV67BR37DM71S4底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH67BR37DM71S4底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF67R37DM71S4B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF67R37DM71S4B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF67R37DM71S4B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF67R37DM71S4B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA67R37DM71S4空心軸斜齒輪─傘齒輪減速電機
KV67R37DM71S4花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH67R37DM71S4空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT67R37DM71S4空心軸安裝斜齒輪—傘齒輪減速電機
KAZ67R37DM71S4B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ67R37DM71S4B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ67R37DM71S4B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

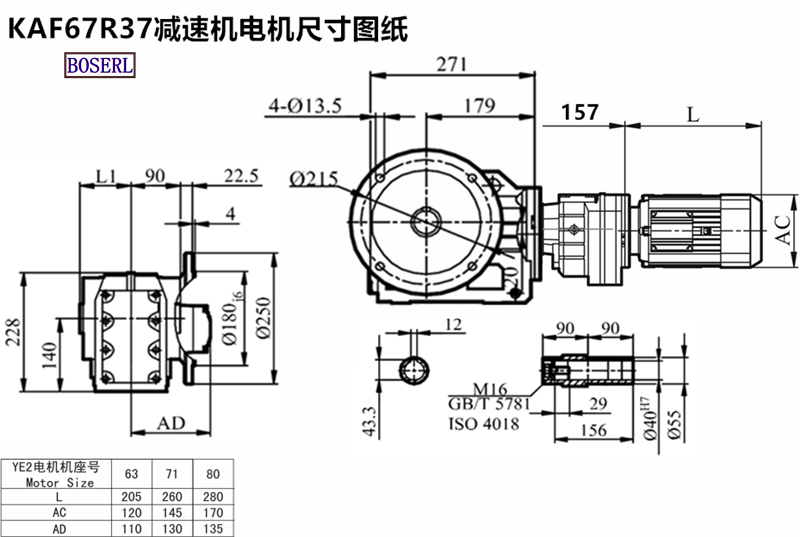

KAF67R37DM71S4減速機馬達安裝尺寸圖紙
KAF67R37DM71S4減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約大減速比減速機
關鍵詞:KAF系列減速機_大減速比減速機與電機_大速比減速機電機一套_大減速比減速器_大比數減速機_大比數減速器_大速比減速器生產廠家
KAF系列減速機型號：KAF37減速機,KAF47減速機,KAF57減速機,KAF67減速機,KAF77減速機,KAF87減速機,KAF97減速機,KAF107減速機,KAF127減速機,KAF157減速機,KAF167減速機,KAF187減速機
KAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 160KW電機能配多大螺旋傘齒輪減速器 KAF67R37DM71S4 KAF67R37DRN80MK4
