KA97R57DM71S4詳細信息
KA97R57DM71S4
關鍵詞：160KW電機能配多大雙出軸減速器_KA97R57DM71S4_KA97R57DRS80S4
KA97R57DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA97R57DM71S4 | 3108 | 0.25KW | 0.42r/min | 4980N.m | 158kg | 39900N | 0.85 |
| KA97R57DM71S4 | 2757 | 0.25KW | 0.47r/min | 4350N.m | 158kg | 40000N | 1.00 |
| KA97R57DM71S4 | 2419 | 0.25KW | 0.54r/min | 3920N.m | 158kg | 40000N | 1.10 |
| KA97R57DM71S4 | 2123 | 0.25KW | 0.61r/min | 3420N.m | 158kg | 40000N | 1.25 |
| KA97R57DM71S4 | 1856 | 0.25KW | 0.70r/min | 3010N.m | 158kg | 40000N | 1.40 |
| KA97R57DM71S4 | 1625 | 0.25KW | 0.80r/min | 2570N.m | 158kg | 40000N | 1.65 |
| KA97R57DM71S4 | 1430 | 0.25KW | 0.91r/min | 2240N.m | 158kg | 40000N | 1.90 |
| KA97R57DM71S4 | 1261 | 0.25KW | 1.00r/min | 2050N.m | 158kg | 40000N | 2.10 |
| KA97R57DM71S4 | 1102 | 0.25KW | 1.20r/min | 1790N.m | 158kg | 40000N | 2.40 |
| KA97R57DM71S4 | 957 | 0.25KW | 1.40r/min | 1560N.m | 158kg | 40000N | 2.70 |
| KA97R57DM71S4 | 855 | 0.25KW | 1.50r/min | 1400N.m | 158kg | 40000N | 3.10 |
KA97R57DRS80S4減速機電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA97R57DRS80S4 | 1430 | 0.55KW | 0.96r/min | 4860N.m | 163kg | 40000N | 0.90 |
| KA97R57DRS80S4 | 1261 | 0.55KW | 1.10r/min | 4360N.m | 163kg | 40000N | 1.00 |
| KA97R57DRS80S4 | 1102 | 0.55KW | 1.20r/min | 3810N.m | 163kg | 40000N | 1.15 |
| KA97R57DRS80S4 | 957 | 0.55KW | 1.40r/min | 3340N.m | 163kg | 40000N | 1.30 |
| KA97R57DRS80S4 | 855 | 0.55KW | 1.60r/min | 2990N.m | 163kg | 40000N | 1.45 |
| KA97R57DRS80S4 | 573 | 0.55KW | 2.40r/min | 1980N.m | 163kg | 40000N | 2.20 |
| KA97R57DRS80S4 | 743 | 0.55KW | 1.90r/min | 2500N.m | 163kg | 40000N | 1.70 |
| KA97R57DRS80S4 | 652 | 0.55KW | 2.10r/min | 2210N.m | 163kg | 40000N | 1.95 |
| KA97R57DRS80S4 | 504 | 0.55KW | 2.70r/min | 1690N.m | 163kg | 40000N | 2.50 |
| KA97R57DRS80S4 | 437 | 0.55KW | 3.20r/min | 1450N.m | 163kg | 40000N | 3.00 |
| KA97R57DRS80S4 | 382 | 0.55KW | 3.60r/min | 1300N.m | 163kg | 40000N | 3.30 |
| KA97R57DRS80S4 | 305 | 0.55KW | 4.50r/min | 1040N.m | 163kg | 40000N | 4.10 |
KA97R57DM71S4減速機類型：
K97R57DM71S4底腳安裝斜齒輪—傘齒輪減速電機
KA97R57DM71S4底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV97BR57DM71S4底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH97BR57DM71S4底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF97R57DM71S4B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF97R57DM71S4B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF97R57DM71S4B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF97R57DM71S4B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA97R57DM71S4空心軸斜齒輪─傘齒輪減速電機
KV97R57DM71S4花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH97R57DM71S4空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT97R57DM71S4空心軸安裝斜齒輪—傘齒輪減速電機
KAZ97R57DM71S4B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ97R57DM71S4B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ97R57DM71S4B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

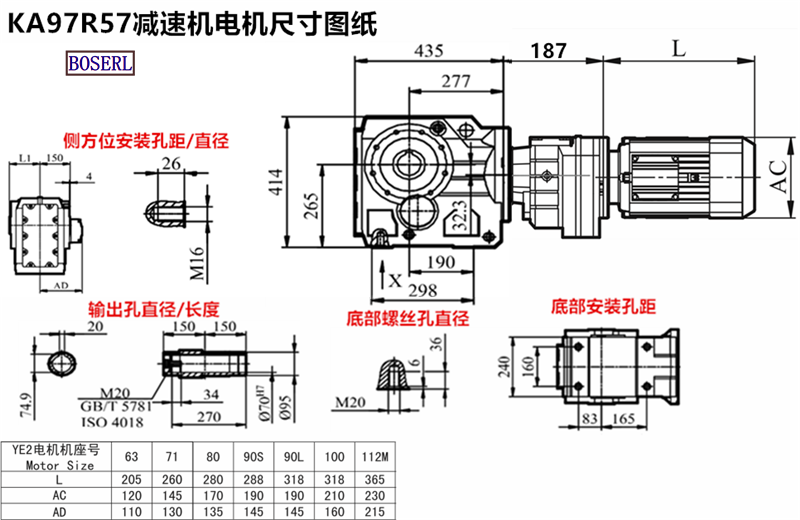

KA97R57DM71S4減速機馬達安裝尺寸圖紙
KA97R57DM71S4減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約雙孔輸出減速電機
關鍵詞:KA系列減速機與電機_雙孔輸出減速電機一套_雙孔輸出減速機電機_雙孔輸出電機減速機_雙速電動機減速機_通孔減速機_雙速電機減速機生產廠家
KA系列減速機型號：KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機
KA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
