FAF37DRE71M4詳細信息
FAF37DRE71M4
關鍵詞：15KW電機與減速箱一體機_FAF37DRE71M4_FAF37DM71M4
FAF37DRE71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF37DRE71M4 | 86.53 | 0.37KW | 16.0rpm | 220N.m | 23.5Kg | 3960N | 0.90 |
| FAF37DRE71M4 | 80.65 | 0.37KW | 17.0rpm | 205N.m | 23.5Kg | 4200N | 0.95 |
| FAF37DRE71M4 | 70.50 | 0.37KW | 20.0rpm | 180N.m | 23.5Kg | 4550N | 1.10 |
| FAF37DRE71M4 | 66.09 | 0.37KW | 21.0rpm | 169N.m | 23.5Kg | 4680N | 1.20 |
| FAF37DRE71M4 | 58.32 | 0.37KW | 24.0rpm | 149N.m | 23.5Kg | 4880N | 1.35 |
| FAF37DRE71M4 | 54.54 | 0.37KW | 25.0rpm | 140N.m | 23.5Kg | 4970N | 1.45 |
| FAF37DRE71M4 | 51.70 | 0.37KW | 27.0rpm | 132N.m | 23.5Kg | 5030N | 1.50 |
| FAF37DRE71M4 | 47.02 | 0.37KW | 29.0rpm | 120N.m | 23.5Kg | 5120N | 1.65 |
| FAF37DRE71M4 | 43.83 | 0.37KW | 31.0rpm | 112N.m | 23.5Kg | 5180N | 1.80 |
| FAF37DRE71M4 | 38.31 | 0.37KW | 36.0rpm | 98N.m | 23.5Kg | 5270N | 2.00 |
| FAF37DRE71M4 | 35.91 | 0.37KW | 38.0rpm | 92N.m | 23.5Kg | 5300N | 2.20 |
| FAF37DRE71M4 | 31.69 | 0.37KW | 44.0rpm | 81N.m | 23.5Kg | 5300N | 2.50 |
| FAF37DRE71M4 | 28.09 | 0.37KW | 49.0rpm | 72N.m | 23.5Kg | 5140N | 2.80 |
| FAF37DRE71M4 | 23.88 | 0.37KW | 58.0rpm | 61N.m | 23.5Kg | 4930N | 3.30 |
FAF37DM71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF37DM71M4 | 86.53 | 0.37KW | 16.0rpm | 220N.m | 23.5Kg | 3960N | 0.90 |
| FAF37DM71M4 | 80.65 | 0.37KW | 17.0rpm | 205N.m | 23.5Kg | 4200N | 0.95 |
| FAF37DM71M4 | 70.50 | 0.37KW | 20.0rpm | 180N.m | 23.5Kg | 4550N | 1.10 |
| FAF37DM71M4 | 66.09 | 0.37KW | 21.0rpm | 169N.m | 23.5Kg | 4680N | 1.20 |
| FAF37DM71M4 | 58.32 | 0.37KW | 24.0rpm | 149N.m | 23.5Kg | 4880N | 1.35 |
| FAF37DM71M4 | 54.54 | 0.37KW | 25.0rpm | 140N.m | 23.5Kg | 4970N | 1.45 |
| FAF37DM71M4 | 51.70 | 0.37KW | 27.0rpm | 132N.m | 23.5Kg | 5030N | 1.50 |
| FAF37DM71M4 | 47.02 | 0.37KW | 29.0rpm | 120N.m | 23.5Kg | 5120N | 1.65 |
| FAF37DM71M4 | 43.83 | 0.37KW | 31.0rpm | 112N.m | 23.5Kg | 5180N | 1.80 |
| FAF37DM71M4 | 38.31 | 0.37KW | 36.0rpm | 98N.m | 23.5Kg | 5270N | 2.00 |
| FAF37DM71M4 | 35.91 | 0.37KW | 38.0rpm | 92N.m | 23.5Kg | 5300N | 2.20 |
| FAF37DM71M4 | 31.69 | 0.37KW | 44.0rpm | 81N.m | 23.5Kg | 5300N | 2.50 |
| FAF37DM71M4 | 28.09 | 0.37KW | 49.0rpm | 72N.m | 23.5Kg | 5140N | 2.80 |
| FAF37DM71M4 | 23.88 | 0.37KW | 58.0rpm | 61N.m | 23.5Kg | 4930N | 3.30 |

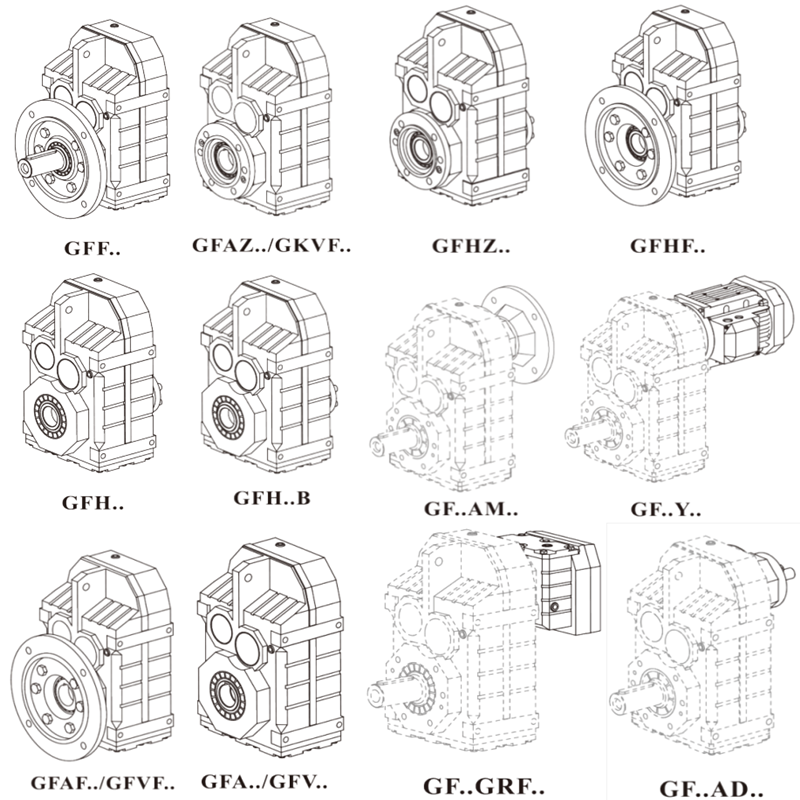

FAF37DRE71M4齒輪減速機馬達類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

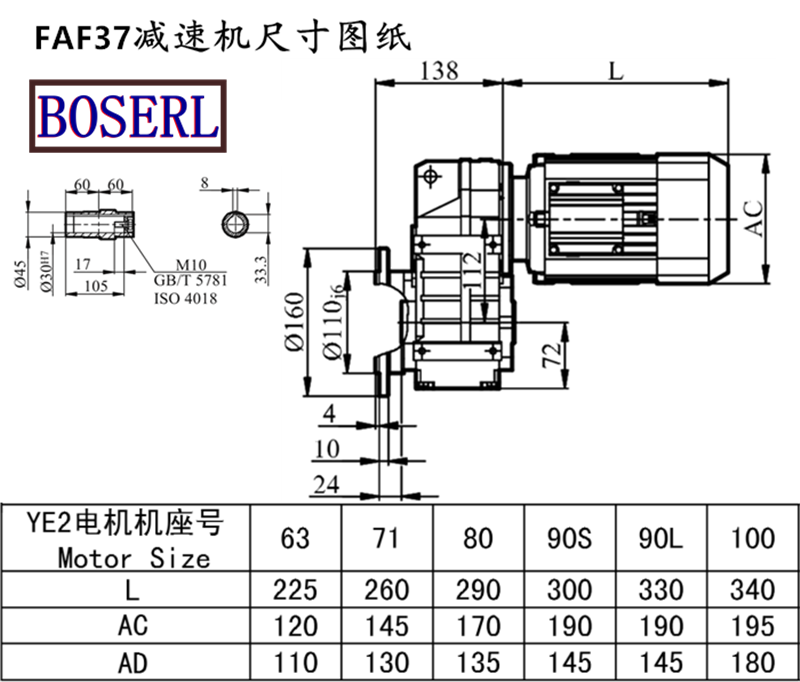

FAF37DRE71M4齒輪減速機馬達安裝尺寸圖紙
FAF37DRE71M4齒輪減速機馬達生產廠家，看廠請?zhí)崆叭祛A(yù)約三相220V電機減速機
關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家
FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機
FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 15KW電機與減速箱一體機 FAF37DRE71M4 FAF37DM71M4
