FA97R57DV71S4詳細信息
FA97R57DV71S4
關鍵詞：200KW適配平行軸齒輪減速機_FA97R57DV71S4_FA97R57DRN63MS4
FA97R57DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA97R57DV71S4 | 2907 | 0.25KW | 0.45r/min | 4670N.m | 288kg | 27500N | 0.90 |
| FA97R57DV71S4 | 2553 | 0.25KW | 0.51r/min | 4180N.m | 288kg | 30300N | 1.05 |
| FA97R57DV71S4 | 2245 | 0.25KW | 0.58r/min | 3670N.m | 288kg | 31600N | 1.15 |
| FA97R57DV71S4 | 1970 | 0.25KW | 0.66r/min | 3200N.m | 288kg | 32800N | 1.35 |
| FA97R57DV71S4 | 1527 | 0.25KW | 0.85r/min | 2500N.m | 288kg | 34400N | 1.70 |
| FA97R57DV71S4 | 1327 | 0.25KW | 0.98r/min | 2090N.m | 288kg | 35200N | 2.00 |
| FA97R57DV71S4 | 1171 | 0.25KW | 1.10r/min | 1910N.m | 288kg | 35500N | 2.20 |
| FA97R57DV71S4 | 1022 | 0.25KW | 1.30r/min | 1670N.m | 288kg | 36000N | 2.60 |
| FA97R57DV71S4 | 1722 | 0.25KW | 0.75r/min | 2820N.m | 288kg | 33700N | 1.50 |
FA97R57DRN63MS4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA97R57DRN63MS4 | 6469 | 0.12KW | 0.21r/min | 4140N.m | 283.5kg | 30400N | 1.05 |
| FA97R57DRN63MS4 | 5615 | 0.12KW | 0.25r/min | 3820N.m | 283.5kg | 31300N | 1.15 |
| FA97R57DRN63MS4 | 4961 | 0.12KW | 0.28r/min | 3320N.m | 283.5kg | 32500N | 1.30 |
| FA97R57DRN63MS4 | 4333 | 0.12KW | 0.32r/min | 2900N.m | 283.5kg | 33500N | 1.50 |
| FA97R57DRN63MS4 | 3906 | 0.12KW | 0.35r/min | 2690N.m | 283.5kg | 34000N | 1.60 |
| FA97R57DRN63MS4 | 3352 | 0.12KW | 0.41r/min | 2320N.m | 283.5kg | 34800N | 1.85 |
| FA97R57DRN63MS4 | 2907 | 0.12KW | 0.47r/min | 1910N.m | 283.5kg | 35500N | 2.20 |
| FA97R57DRN63MS4 | 2553 | 0.12KW | 0.54r/min | 1750N.m | 283.5kg | 35800N | 2.40 |
FA97R57DV71S4減速機電動機類型：

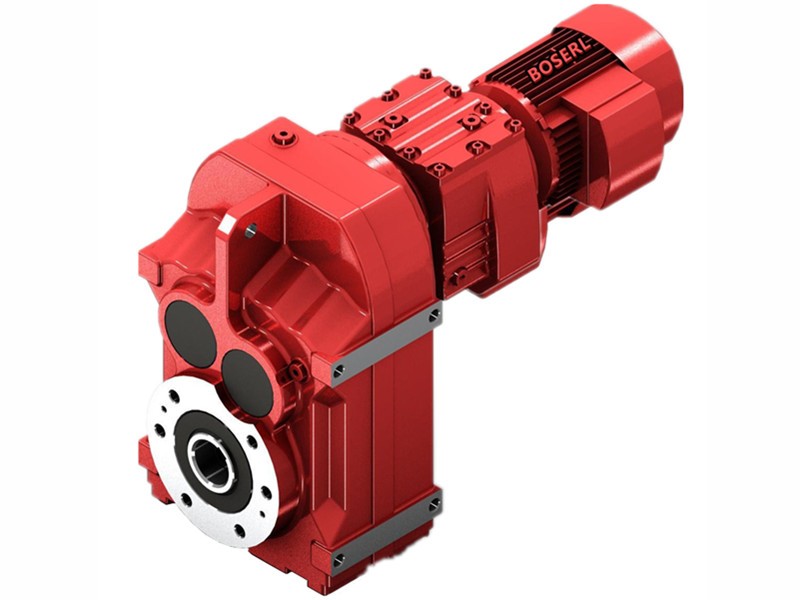

F97R57DV71S4底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA97BR57DV71S4底腳空心軸安裝平行軸—斜齒輪減速機
FV97BR57DV71S4底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA97R57DV71S4空心軸安裝平行軸—斜齒輪減速機
FV97R57DV71S4花鍵空心軸安裝平行軸—斜齒輪減速機
FAF97R57DV71S4是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF97R57DV71S4是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ97R57DV71S4是B14法蘭安裝平行軸—斜齒輪減速機
FVZ97R57DV71S4是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF97R57DV71S4是B5法蘭安裝平行軸—斜齒輪減速機
FH97BR57DV71S4底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH97R57DV71S4是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF97R57DV71S4是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ97R57DV71S4是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

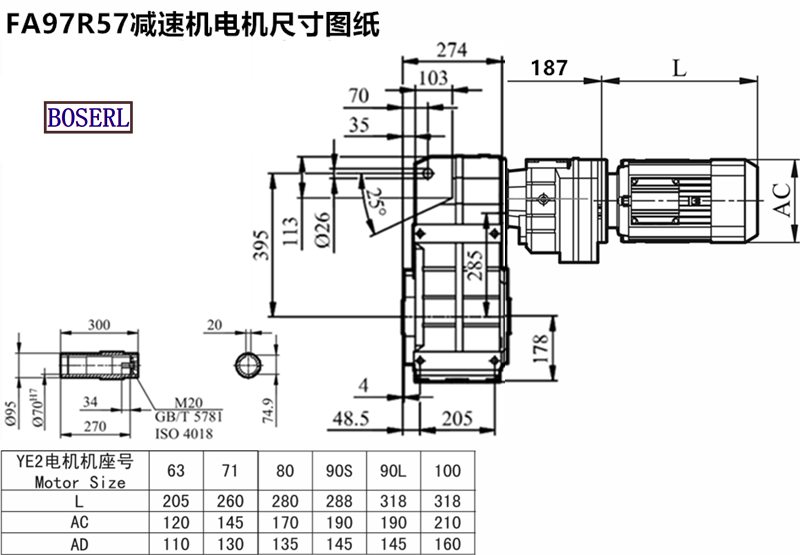

FA97R57DV71S4減速機電動機安裝尺寸圖紙
FA97R57DV71S4減速機電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 200KW適配平行軸齒輪減速機 FA97R57DV71S4 FA97R57DRN63MS4
