FA127DRE280S4詳細信息

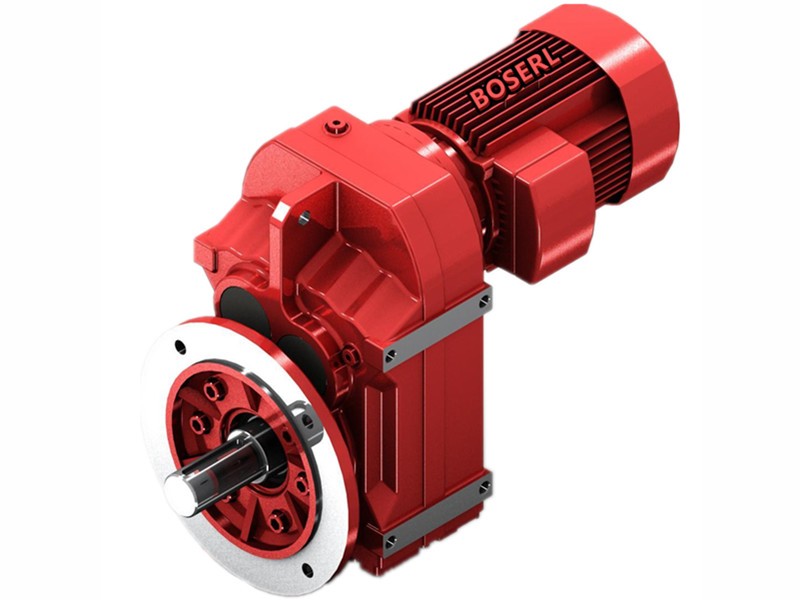

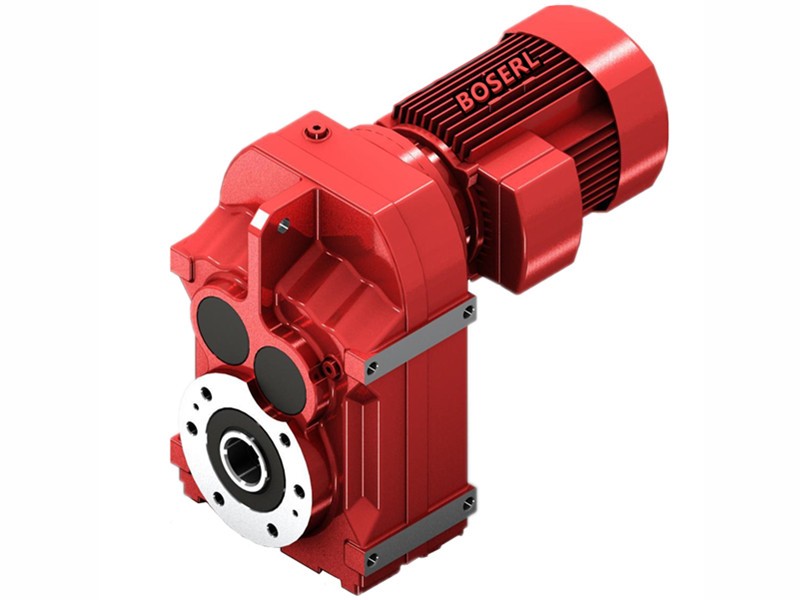

FA127DRE280S4
關鍵詞：螺旋斜齒輪減速機電機_FA127DRE280S4_FA127DVE280S4
FA127DRE280S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA127DRE280S4 | 25.30 | 75KW | 58.0rpm | 12200N.m | 1260kg | 40000N | 1.00 |
| FA127DRE280S4 | 21.38 | 75KW | 69.0rpm | 10300N.m | 1260kg | 43000N | 1.15 |
| FA127DRE280S4 | 18.87 | 75KW | 78.0rpm | 9120N.m | 1260kg | 44400N | 1.20 |
| FA127DRE280S4 | 16.36 | 75KW | 90.0rpm | 7910N.m | 1260kg | 45200N | 1.40 |
| FA127DRE280S4 | 14.55 | 75KW | 102rpm | 7040N.m | 1260kg | 45000N | 1.55 |
| FA127DRE280S4 | 12.54 | 75KW | 118rpm | 6060N.m | 1260kg | 44600N | 1.65 |
| FA127DRE280S4 | 10.19 | 75KW | 145rpm | 4930N.m | 1260kg | 43700N | 1.95 |
| FA127DRE280S4 | 8.86 | 75KW | 167rpm | 4280N.m | 1260kg | 42200N | 1.65 |
| FA127DRE280S4 | 7.88 | 75KW | 188rpm | 3810N.m | 1260kg | 41600N | 1.55 |
| FA127DRE280S4 | 6.80 | 75KW | 218rpm | 3280N.m | 1260kg | 40700N | 2.10 |
| FA127DRE280S4 | 5.52 | 75KW | 268rpm | 2670N.m | 1260kg | 39300N | 2.20 |
| FA127DRE280S4 | 4.68 | 75KW | 316rpm | 2260N.m | 1260kg | 38100N | 2.60 |
FA127DVE280S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA127DVE280S4 | 25.30 | 75KW | 58.0rpm | 12200N.m | 1260kg | 40000N | 1.00 |
| FA127DVE280S4 | 21.38 | 75KW | 69.0rpm | 10300N.m | 1260kg | 43000N | 1.15 |
| FA127DVE280S4 | 18.87 | 75KW | 78.0rpm | 9120N.m | 1260kg | 44400N | 1.20 |
| FA127DVE280S4 | 16.36 | 75KW | 90.0rpm | 7910N.m | 1260kg | 45200N | 1.40 |
| FA127DVE280S4 | 14.55 | 75KW | 102rpm | 7040N.m | 1260kg | 45000N | 1.55 |
| FA127DVE280S4 | 12.54 | 75KW | 118rpm | 6060N.m | 1260kg | 44600N | 1.65 |
| FA127DVE280S4 | 10.19 | 75KW | 145rpm | 4930N.m | 1260kg | 43700N | 1.95 |
| FA127DVE280S4 | 8.86 | 75KW | 167rpm | 4280N.m | 1260kg | 42200N | 1.65 |
| FA127DVE280S4 | 7.88 | 75KW | 188rpm | 3810N.m | 1260kg | 41600N | 1.55 |
| FA127DVE280S4 | 6.80 | 75KW | 218rpm | 3280N.m | 1260kg | 40700N | 2.10 |
| FA127DVE280S4 | 5.52 | 75KW | 268rpm | 2670N.m | 1260kg | 39300N | 2.20 |
| FA127DVE280S4 | 4.68 | 75KW | 316rpm | 2260N.m | 1260kg | 38100N | 2.60 |

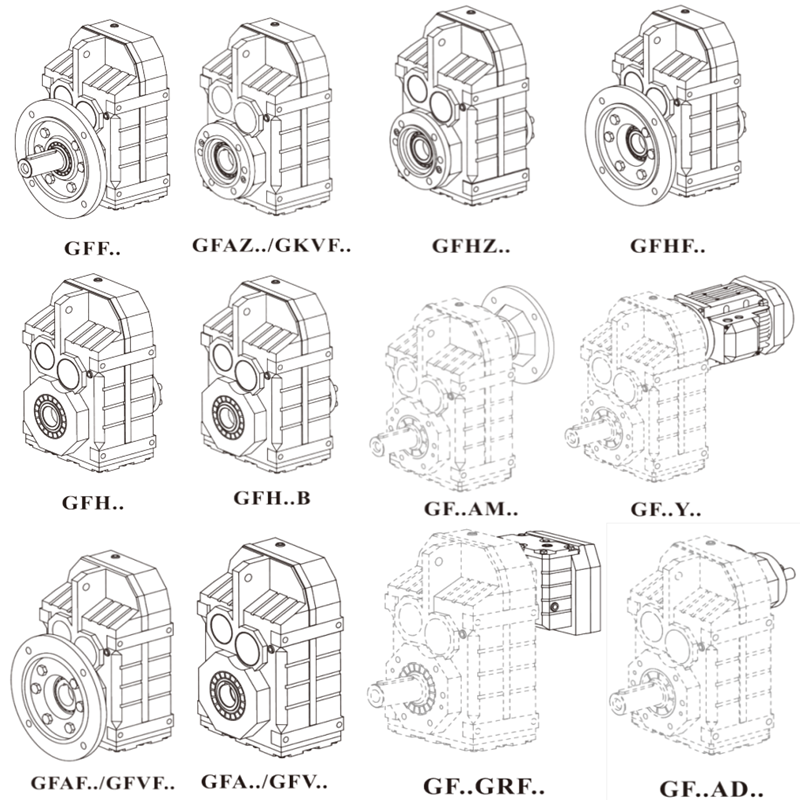

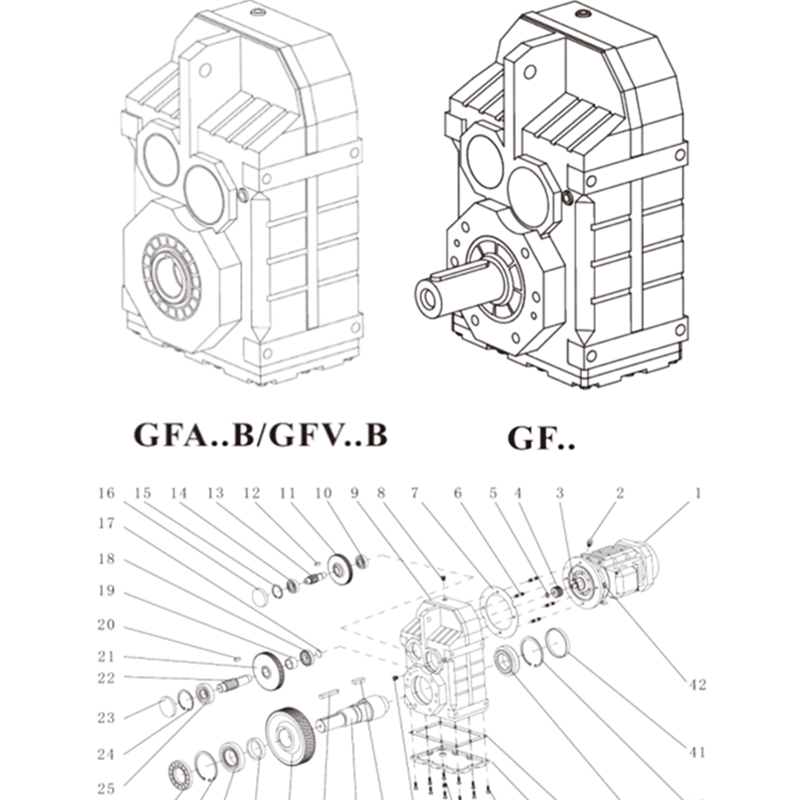

FA127DRE280S4減速器電動機類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

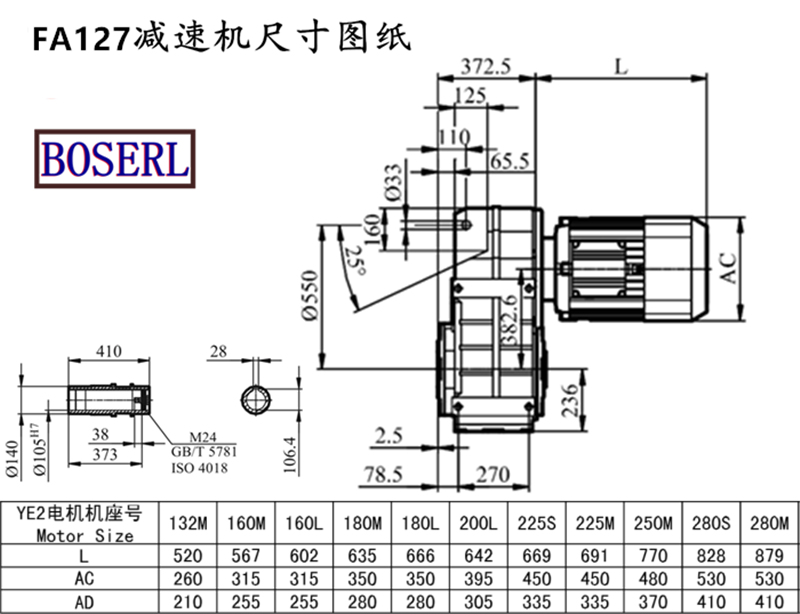

FA127DRE280S4減速器電動機安裝尺寸圖紙
FA127DRE280S4減速器電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
